Marca
Hikvision
Modelo
DS-PM1-I8O2-H
Alarmas

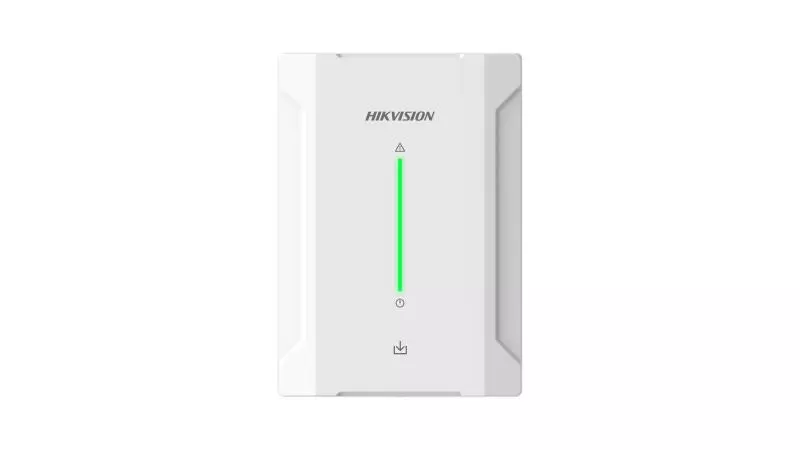

Expansor de Entrada Cableado (Cascada) DS-PM1-I8O2-H
- 8 zonas cableadas integradas
- Soporta conexión 3EOL (Alarma: 1KΩ; Tamper: 1KΩ; Falla: 2.2KΩ)
- Soporta detección de alarma, tamper, mascarado, falla y corto en zona
- 1 salida de alimentación para detectores cableados
- 2 buses Speed-X, soportando modo de expansión de entrada cableada en cascada
$180,000COP
Comprar
Modelos disponibles:
Descripcion
Hikvision DS-PM1-I8O2-H Wired Input Expander（Cascade）, Alarm Wired Intrusion Alarm AX Hybrid PRO. 8 on-board wired zones, 3EOL connection, zone alarm, tamper, masking, fault, short detection, 1 power output, 2 Speed-X bus, supporting wired input expander cascade mode.
Compra ahora el Hikvision DS-PM1-I8O2-H Wired Input Expander（Cascade） para tu seguridad.
Especificaciones
Hardware features
- Alarm input 8
- IO Output 2 (connect to relay module)
- Bus 2×Speed-X bus, 1 input for control panel connection and 1 output for expander cascading
- Tamper-Proof Support (front and rear)
Electrical characteristics
- Power supply 11 to 15 VDC
- Typical voltage 12 VDC
- Power consumption Maximum current: 119 mA@12 VDCQuiescent current: 45 mA@12 VDC
- Output Voltage 9 to 12 VDC
- Output Current Maximum 500 mA
Display
- LED Indicator LED indicators: 1 for power, 1 for fault
General
- Operation temperature -10°C to 40°C
- Operation humidity 10% to 90%
- Shell material Plastic
- Dimension(WxHxD) 110 mm × 155 mm × 32 mm
- Weight 252.5 g
