Marca
Hikvision
Modelo
DS-7116HGHI-K1
Sistemas de Grabación NVR y DVR

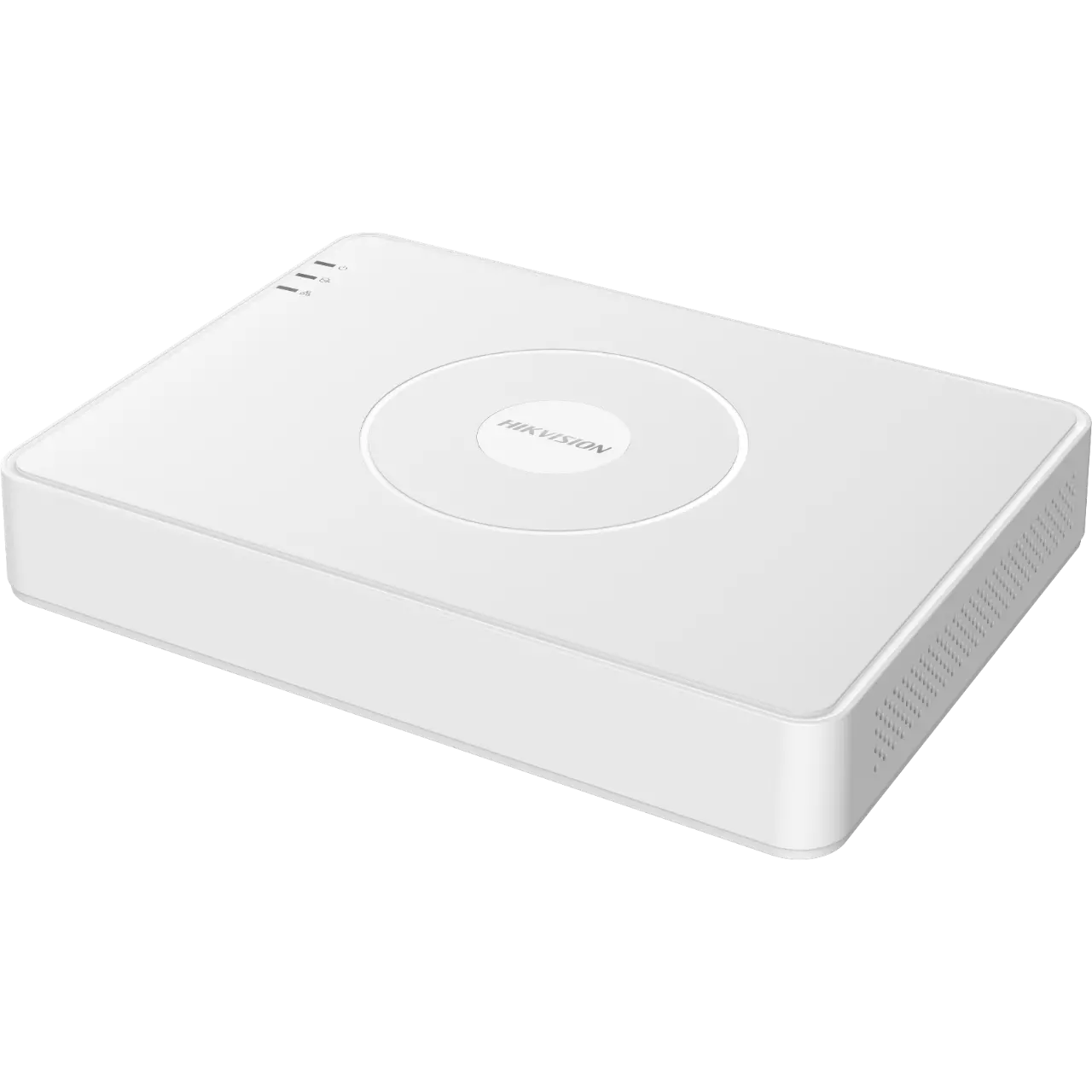

16 CH 1080P Lite Mini 1U H.265 DVR DS-7116HGHI-K1
- Clasificación de objetivos humanos y vehiculares basada en aprendizaje profundo de Detección de Movimiento 2.0
- Compresión de vídeo H.265 Pro+/H.265 Pro/H.265
- Entrada de vídeo HDTVI/AHD/CVI/CVBS/IP
- Audio a través de cable coaxial
- Hasta 18 entradas de cámara IP (hasta 5 MP)
- Capacidad de codificación de Lite@15 fps hasta 1080p
- Máx. 1200 m para señal HDTVI 720p
$470,000COP
Comprar
Modelos disponibles:
- DS-7116HGHI-K1(C)(S)
Descripcion
DVR Hikvision DS-7116HGHI-K1 16 CH 1080P Lite Mini 1U H.265 de la serie de valor de la categoria de Productos Turbo HD.
Deep learning based human and vehicle targets classification of Motion Detection 2.0, H.265 Pro+/H.265 Pro/H.265 video compression, HDTVI/AHD/CVI/CVBS/IP video input, Audio via coaxial cable, Up to 18-ch IP camera inputs (up to 5 MP), Up to 1080p Lite@15 fps encoding capability, Max. 1200 m for 720p HDTVI signal.
Especificaciones
Detección de movimiento 2.0
- Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;
Recording
- Compresión de vídeo H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Resolución de codificación For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor standard definition stream access: WD1/4CIF/VGA/CIF
- Frame Rate Main stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- Vídeo bitrate 32 Kbps to 4 Mbps
- Doble flujo Support
- Stream Type Video, Video & Audio
- Compresión de audio G.711u
- Audio Bitrate 64 Kbps
Video and Audio
- Entrada de vídeo IP 2-ch (up to 18-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP cameras
- Entrada de video analógico 16-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input 1080p25, 1080p30, 720p25, 720p30
- AHD Input 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- CVBS Input PAL/NTSC
- HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode HDMI/VGA simultaneous output
- Entrada de Audio 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
- Salida de audio 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Reproducción Sincrónica 16-ch
Red
- Total Bandwidth 96 Mbps
- Conexión remota 128
- Protocolo de red TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Interfaz de red 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
- SATA 1, SATA interface
- Capacidad Up to 10 TB capacity for each disk
- Interfaz USB 2 × USB 2.0
General
- Fuente de alimentación 12 VDC, 1.6 A
- Consumo ≤ 7 W (without HDD)
- Temperatura de trabajo -10 °C to 55 °C (14 °F to 131 °F)
- Condiciones de Humedad 10% to 90%
- Dimensión (W × D × H) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
- ≤ 1.8 kg (without HDD, 4.0 lb.)
